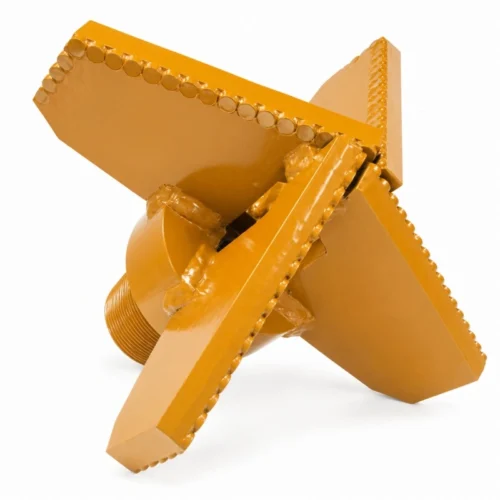

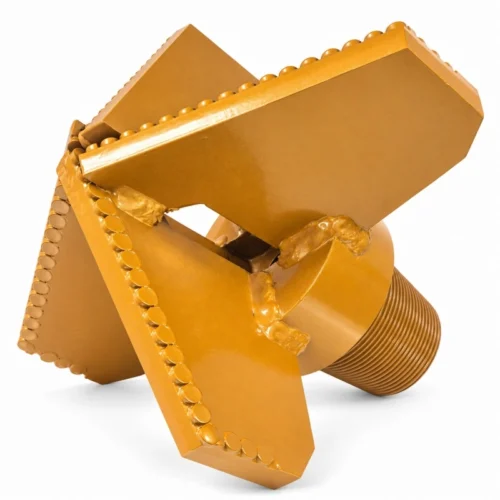

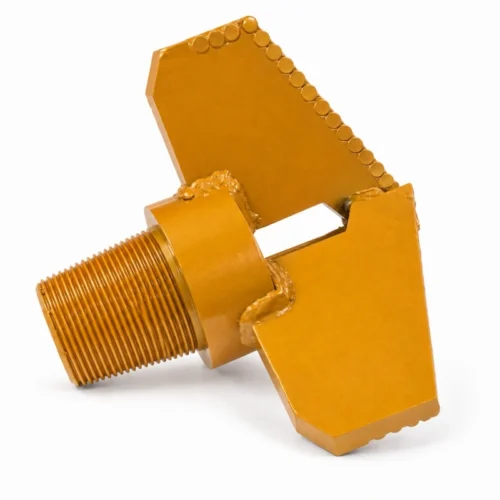

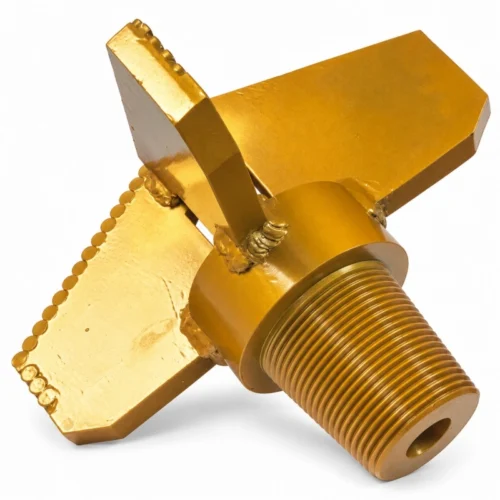

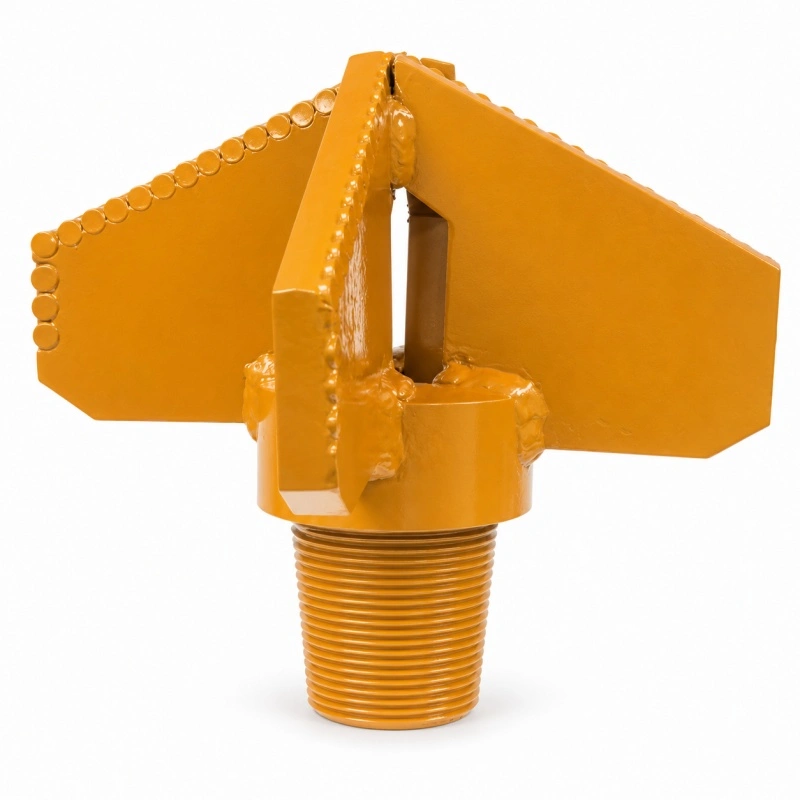

Four-Wing PDC Drag Bit for Water Well & Anchor Drilling
Size: 75–325 mm
Application: Water Well / Anchor / Grouting / Geothermal
Formation: Soft to Medium-Hard Rock
Structure: Four-Wing Drag Type
PDC Cutter: Customized Configuration
Customization: Diameter / Thread / Cutter Layout / Reinforced Design
Request a Quote
Enter the quantity you need and add to your quote list for pricing inquiries.
Description
Four-Wing PDC Drag Bit for Non-Coring Drilling
Four-Wing PDC Drag Bit is designed for non-coring drilling applications that require stable guidance, balanced cutting and efficient penetration. The four-wing structure provides more cutting contact points and improved load distribution compared with conventional three-wing designs, helping maintain smoother drilling performance and better borehole stability.
Available from 75 mm to 325 mm with customized thread connections, PDC cutter layouts and reinforced configurations.
Size 75–325 mm | Structure Four-Wing Drag Type | Formation Soft to Medium-Hard Rock |
Application Water Well / Anchor / Grouting / Geothermal | PDC Cutter Customized Configuration | Customization Diameter / Thread / Cutter Layout / Reinforced Design |
More contact points, smoother drilling
Six design advantages behind the Four-Wing PDC Drag Bit.
01 / 06 Four-Wing Balanced StructureThe four-wing design distributes cutting loads more evenly and improves drilling stability. | 02 / 06 Stable Borehole GuidanceAdditional wing support helps maintain smoother drilling and more consistent borehole direction. | 03 / 06 Efficient Rock CuttingThe PDC cutter arrangement provides efficient formation removal in suitable formations. |
04 / 06 Reduced VibrationMore cutting contact points help reduce vibration compared with lighter wing configurations. | 05 / 06 Wide Size RangeAvailable from 75 mm to 325 mm. | 06 / 06 Custom ConfigurationDiameter, thread connection, PDC cutter quantity and reinforced structure can be customized. |
Used across water well, anchor and construction drilling
This four-wing PDC drag bit is suitable for water well drilling, anchor drilling, grouting holes and geothermal drilling. Other applications include slope support drilling, foundation drilling, coal mine drilling, gas drainage holes and engineering construction.
01 Water Well DrillingStable guidance and balanced cutting for efficient borehole advance. | 02 Anchor DrillingImproved load distribution for anchor and slope support drilling. |
03 Grouting HolesReliable hole formation for grouting and foundation support operations. | 04 Geothermal DrillingEfficient penetration for geothermal borehole and energy construction projects. |
Suitable Rock FormationsSuitable for soft to medium-hard formations. Reinforced cutter configurations are available for more demanding or moderately abrasive formations.
⚠️ Note: Actual drilling performance depends on rock hardness, abrasiveness, fractures, drilling parameters, cutter selection and operating conditions. | ||||||||||
Which PDC drag bit should you choose?
The final selection depends on formation hardness, bit diameter, drilling rig and required penetration rate.
Four-Wing Four-Wing PDC Drag BitMore suitable when you need:
| Three-Wing Three-Wing PDC Drag BitMore suitable when you need:
|
Standard sizes and configurations
Available from 75 mm to 325 mm. Cutter quantity, cutter layout and thread connection are configured according to the specific drilling project.
How to select the right four-wing PDC drag bit
To recommend a suitable configuration, please provide the following information. Our engineers will respond with a factory quotation within 24 hours.
01 Required Diameter 75 / 91 / 113 / 133 / 153 / 171 / 200 / 220 / 245 / 275 / 300 / 325 mm | 02 Rock Formation Sandstone / Mudstone / Limestone / Coal / Backfill | 03 Drilling Application Water Well / Anchor / Grouting / Geothermal / Mining |
04 Thread Connection 42 / 50 / 76 / 89 or customized | 05 Drilling Rig or Drill Rod Information Please provide drilling rig model or drill rod specification for thread matching. | |
OEM & ODM customization for drilling projects
Every drilling project is different. Chenghui Drilling customizes each bit based on your project data — from cutter layout to thread connection.
Rock formation, drilling rig, drill rod and drilling parameters all affect drill bit performance. Our engineering team works with your technical data to recommend the most suitable cutter layout and thread connection.
|
Professional drilling tools manufacturer in China
Chenghui Drilling Co., Ltd. specializes in the design, production and supply of PDC drill bits, tricone drill bits, DTH drilling tools and related drilling equipment for customers worldwide. Every drill bit is manufactured and inspected in our own factory, ensuring stable quality, competitive pricing and reliable delivery for international drilling contractors and distributors.
|
Need a customized Four-Wing PDC Drag Bit?
Share your drilling requirements with our engineers. We will recommend a suitable cutter layout and thread connection, and provide a factory quotation within 24 hours.
| 1. Required Diameter | 2. Rock Formation |
| 3. Drilling Application | 4. Thread Connection |
